High-Precision CNC Machining Services for Tight-Tolerance Components

Custom High-Precision CNC Machining

ForceBeyond provides custom high-precision CNC machining services for components requiring controlled dimensions, concentricity, flatness, runout, position, surface finish, and repeatability. Capabilities may include Swiss-style turning, 5-axis milling, mill-turn machining, wire EDM, micro-machining, precision grinding, and advanced inspection.

Programs may use billet, bar, plate, investment castings, or forgings depending on geometry, material, volume, and performance requirements. ForceBeyond coordinates machining, secondary operations, finishing, inspection, assembly, and logistics through an integrated manufacturing network.

When to Choose High-Precision Machining

High-precision machining is appropriate when part function depends on dimensional control, stable process capability, controlled surfaces, or repeatable assembly performance.

• Critical GD&T features: position, concentricity, runout, cylindricity, flatness, profile, and perpendicularity.
• Small or slender parts: shafts, pins, screws, nozzles, connectors, and instrument components.

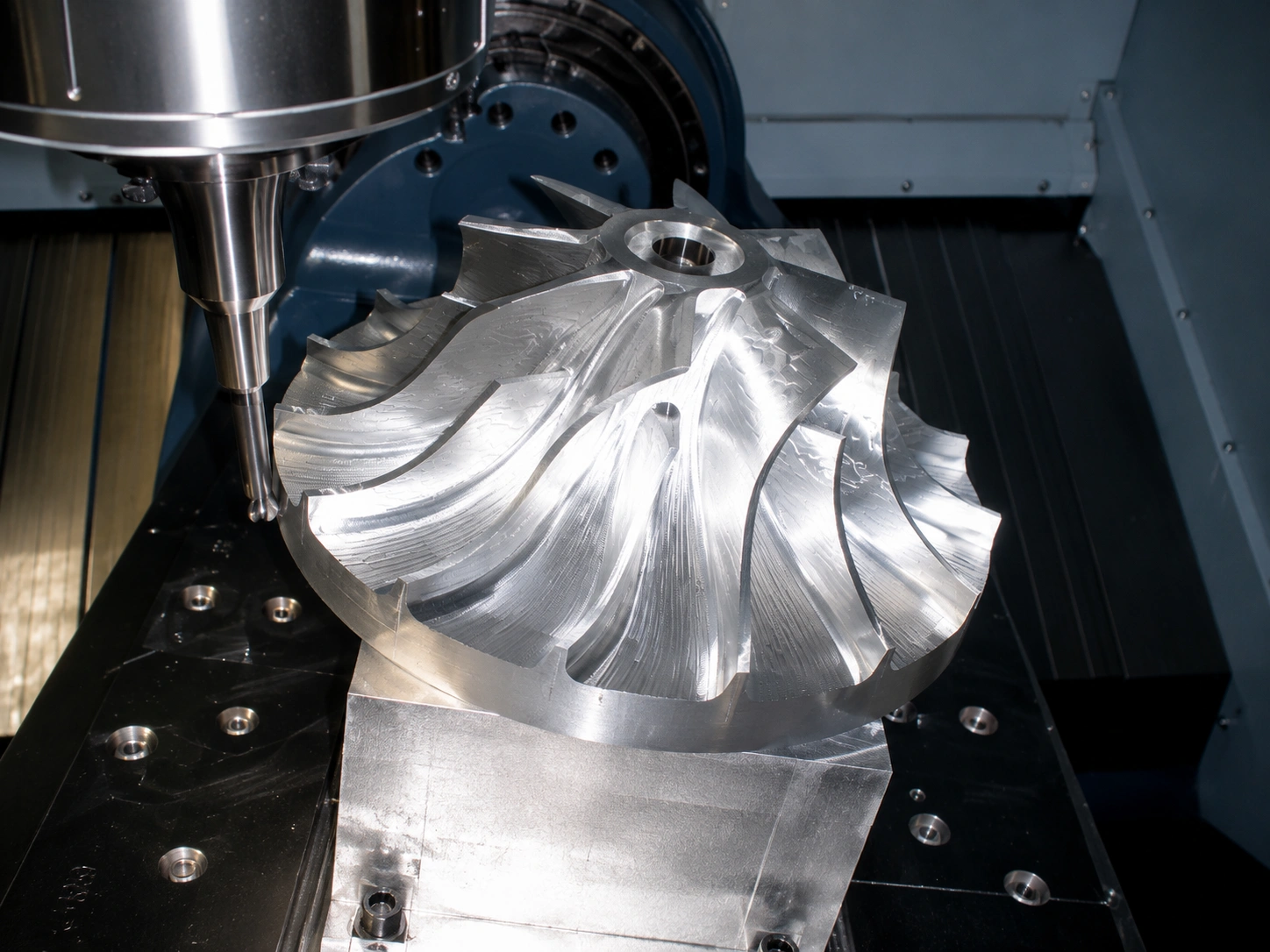

• Complex multi-sided geometry: impellers, manifolds, optical mounts, housings, and aerospace components.
• Hardened or difficult materials: titanium, stainless steel, duplex, Inconel, tool steel, and engineered plastics.
• Controlled surfaces: sealing faces, bearing journals, optical interfaces, medical finishes, and precision fits.

High-Precision Machining Capabilities

Achievable tolerance depends on feature size, geometry, material, process, machine condition, thermal control, fixturing, inspection method, and production quantity. The table below describes typical process strengths rather than universal tolerance guarantees.

Tolerance and GD&T Planning

Tight tolerances should be assigned only where they support function, fit, sealing, alignment, or inspection requirements.

• Functional tolerancing: identify critical features, mating conditions, datums, and assembly interfaces.
• Process capability: evaluate tolerance relative to feature size, material, tool access, thermal stability, and expected volume.
• Datum strategy: establish stable manufacturing and inspection datums early in design review.
• Surface finish: specify finish only where it affects sealing, wear, fatigue, flow, cleanliness, or appearance.
• Measurement uncertainty: ensure the inspection method is capable relative to the drawing tolerance.

Process Controls for Tight-Tolerance Machining

• Thermal management: stabilize machine, workpiece, coolant, and inspection conditions where temperature affects results.
• Rigid fixturing: control deformation, vibration, clamping distortion, and datum repeatability.
• Tool-life monitoring: track wear, spindle load, offset drift, surface finish, and feature size during production.
• In-process measurement: use probing, tool setters, gauges, and statistical checks where appropriate.
• Controlled deburring: remove burrs without changing edges, micro-features, hole size, or surface finish.

Materials for High-Precision Machining

Material properties directly affect tool life, heat generation, burr formation, dimensional stability, and inspection strategy.

• Stainless and carbon steels: 304, 316, 17-4 PH, tool steels, alloy steels, and application-specific grades.
• Titanium alloys: Ti-6Al-4V and other grades used for lightweight, corrosion-resistant, medical, and aerospace components.
• Superalloys and exotic metals: Inconel, Hastelloy, nickel alloys, cobalt alloys, and heat-resistant materials.
• Aluminum and copper alloys: lightweight housings, thermal-management parts, electrical components, and optical structures.
• Engineered plastics: PEEK, acetal, PTFE, and application-specific polymers requiring burr, heat, and deformation control.

Review our materials and technical specifications for broader alloy and material-selection guidance.

Near-Net Casting and Forging for Precision Components

Complex components do not always need to begin as solid billet. Near-net casting or forging can reduce stock removal, cycle time, and material waste when volume and geometry justify tooling.

• Investment casting: useful for complex contours, fluid passages, and hard-to-machine alloys.
• Forging: selected where grain flow, fatigue performance, strength, or pressure-containing requirements favor forged material.
• Machining allowances: critical surfaces, datums, bores, sealing features, and distortion risk must be planned before tooling release.
• Integrated inspection: upstream process variation should be considered in fixture, probing, and final inspection strategy.

Metrology and Inspection for Precision Components

• CMM inspection: dimensional verification of GD&T, position, profile, datums, and feature relationships.
• Optical and vision measurement: non-contact inspection of small features, edges, profiles, and delicate components.
• Surface and form measurement: profilometers, roundness equipment, gauges, and application-specific instruments.
• Production controls: first-article inspection, in-process checks, capability studies, control plans, and sampling plans as required.
• Documentation: inspection reports, certificates of conformity, material records, and customer-specific quality packages.

Learn more about testing and inspection capabilities and quality assurance and certifications.

Deburring, Finishing and Cleanliness

• Precision deburring: manual, mechanical, abrasive, thermal, or electrochemical methods selected according to feature sensitivity.
• Surface finishing: grinding, polishing, electropolishing, passivation, coating, and application-specific finishing.
• Edge control: defined break edges, radii, chamfers, and burr limits for assembly and safety.
• Cleaning: removal of coolant, chips, abrasive residue, oils, and contamination before inspection or packaging.
• Protective packaging: component separation, corrosion protection, clean packaging, and labeling where required.

High-Precision Machining Applications by Industry

• Medical and healthcare: instrument components, screws, pins, housings, alignment devices, nozzles, and nonimplant precision hardware.
• Aerospace and defense: guidance hardware, actuator components, micro-valves, brackets, housings, fasteners, and precision mechanisms.
• Semiconductor and optics: vacuum hardware, wafer-handling components, optical mounts, laser housings, precision stages, and fixtures.
• Fluid and flow control: valve spools, stems, micro-nozzles, manifolds, sealing components, and metering hardware.
• Energy and power generation: turbine-related parts, valve components, precision shafts, fittings, and control hardware.
• Industrial automation and instrumentation: gauges, couplings, sensor housings, motion components, and precision assembly hardware.
