ForceBeyond provides custom stainless steel CNC machining services for shafts, valve parts, housings, manifolds, fittings, medical components, sanitary hardware, brackets, and industrial equipment. Capabilities may include 5-axis milling, CNC turning, mill-turn machining, Swiss machining, drilling, boring, threading, grinding, and finishing.
Programs may include 304, 304L, 316, 316L, 410, 416, 420, 440C, 17-4 PH, 15-5 PH, and application-specific stainless grades. ForceBeyond coordinates raw material, castings, forgings, precision machining, heat treatment, passivation, electropolishing, inspection, assembly, and logistics through an integrated manufacturing network.
Stainless steel machining is often selected when a component requires corrosion resistance, strength, cleanliness, temperature performance, wear resistance, or a controlled surface finish.
Machinability, cutting strategy, heat treatment, corrosion resistance, and mechanical properties vary by alloy family and material condition.
| Stainless Steel Family | Representative Grades | Machining Characteristics and Applications |
|---|---|---|
| Austenitic Stainless Steel | 304, 304L, 316, 316L | Corrosion resistant and ductile but prone to work hardening, built-up edge, and long chips. Used for sanitary hardware, valves, medical parts, marine components, and process equipment. |
| Precipitation-Hardening Stainless Steel | 17-4 PH, 15-5 PH | High-strength stainless grades that can be machined in solution-treated or aged conditions depending on tolerance, hardness, and distortion requirements. |
| Martensitic Stainless Steel | 410, 416, 420, 440C | Heat-treatable grades for valve trim, wear parts, shafts, cutlery, bearings, and mechanical hardware. Machinability varies substantially by grade and hardness. |
| Ferritic Stainless Steel | 409, 430 and application-specific grades | Magnetic, non-hardenable grades used in exhaust, appliance, decorative, and oxidation-resistant applications. |
| Duplex Stainless Steel | 2205, 2507 and specification-controlled duplex grades | High-strength, work-hardening alloys requiring rigid setups, controlled cutting parameters, and suitable tooling for corrosion-resistant flow-control components. |
| Machining Process | Typical Features | Representative Components |
|---|---|---|
| 5-Axis CNC Milling | Complex contours, angled holes, pockets, sealing faces, impeller features, and multi-sided geometry. | Valve bodies, medical housings, brackets, manifolds, turbine-related parts, and complex fixtures. |

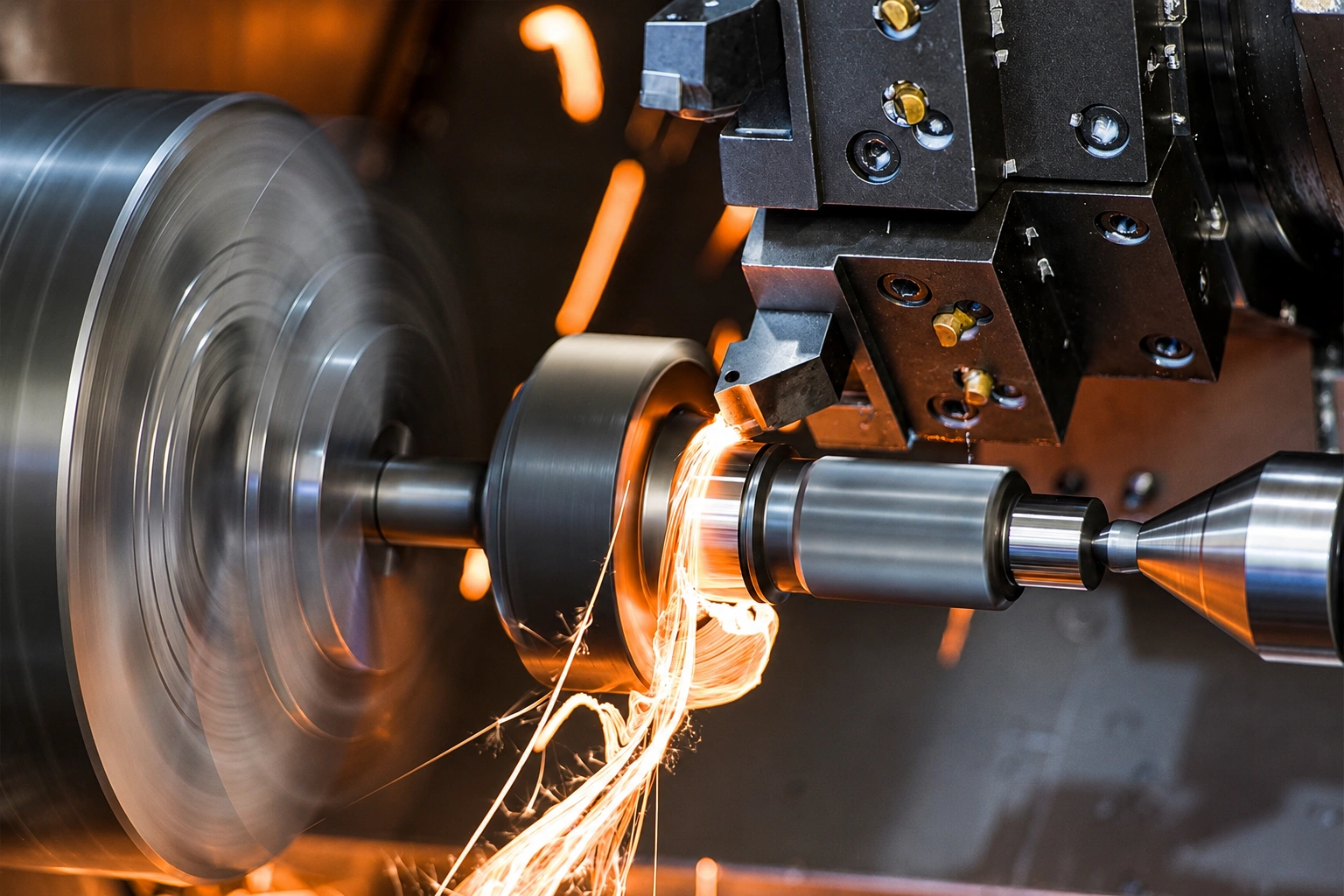

| CNC Turning and Mill-Turn | Diameters, tapers, grooves, threads, bores, cross holes, flats, and eccentric features. | Shafts, valve stems, fittings, sleeves, couplings, nozzles, and rotating components. |
| Swiss Machining | Small diameters, long slender parts, fine threads, micro-features, and close concentricity. | Medical pins, fasteners, fittings, instrument components, connectors, and precision hardware. |
| Grinding and Finishing | Critical diameters, flatness, roundness, hardened surfaces, and fine finish requirements. | Bearing journals, shafts, valve components, wear parts, and precision tooling. |
The most economical starting form depends on geometry, production volume, material utilization, mechanical-property requirements, tooling budget, and machining complexity.
Heat treatment can change hardness, strength, residual stress, and dimensions. Process sequencing should account for distortion and final tolerance.
Surface treatment should be selected according to alloy, service environment, cleanliness, appearance, corrosion resistance, and dimensional impact.
Learn more about testing and inspection capabilities and quality assurance and certifications.
Free-machining grades such as 416 are generally easier to machine than common austenitic grades because sulfur additions improve chip breaking and reduce cutting forces. Grade selection should not be based on machinability alone. Corrosion resistance, strength, heat treatment, weldability, magnetic response, cleanliness, and governing specifications must also be considered.
Machining, grinding, handling, or blasting can leave free iron and other contaminants on a stainless steel surface. Passivation uses a controlled chemical process to remove these contaminants and support formation of the chromium-rich passive layer. Cleaning, chemistry, verification, and documentation should follow the drawing or applicable specification.
Yes. A common route is rough machining in Condition A, followed by precipitation aging and finish machining where required. The best sequence depends on tolerance, distortion risk, hardness condition, feature geometry, tool access, and the applicable material specification. Heat treatment and final inspection should be planned together.
Provide a 2D drawing and, when available, a 3D CAD model, along with material grade and condition, quantity, critical tolerances, GD&T, surface finish, heat treatment, passivation, electropolishing, inspection, documentation, assembly, packaging, and delivery requirements.
Send your drawing, CAD model, stainless grade, material condition, quantity, tolerances, GD&T, surface finish, heat treatment, passivation, inspection, and delivery requirements for an engineering review.
