HVAC, plumbing, refrigeration, pneumatic, hydraulic, and industrial fluid systems require controlled flow, sealing, pressure containment, corrosion resistance, cleanliness, and repeatable assembly.
ForceBeyond supports valve, pump, compressor, manifold, fitting, actuator, and enclosure programs through investment casting, die casting, forging, precision machining, surface finishing, pressure and leak testing, assembly, and supply-chain coordination.
Potable-water certification, refrigerant compatibility, pressure class, leak rate, approved materials, test method, and documentation must be defined for the complete product and intended service.
| System Area | Representative Components | Potential Manufacturing Routes | Key Engineering Requirements |
|---|---|---|---|

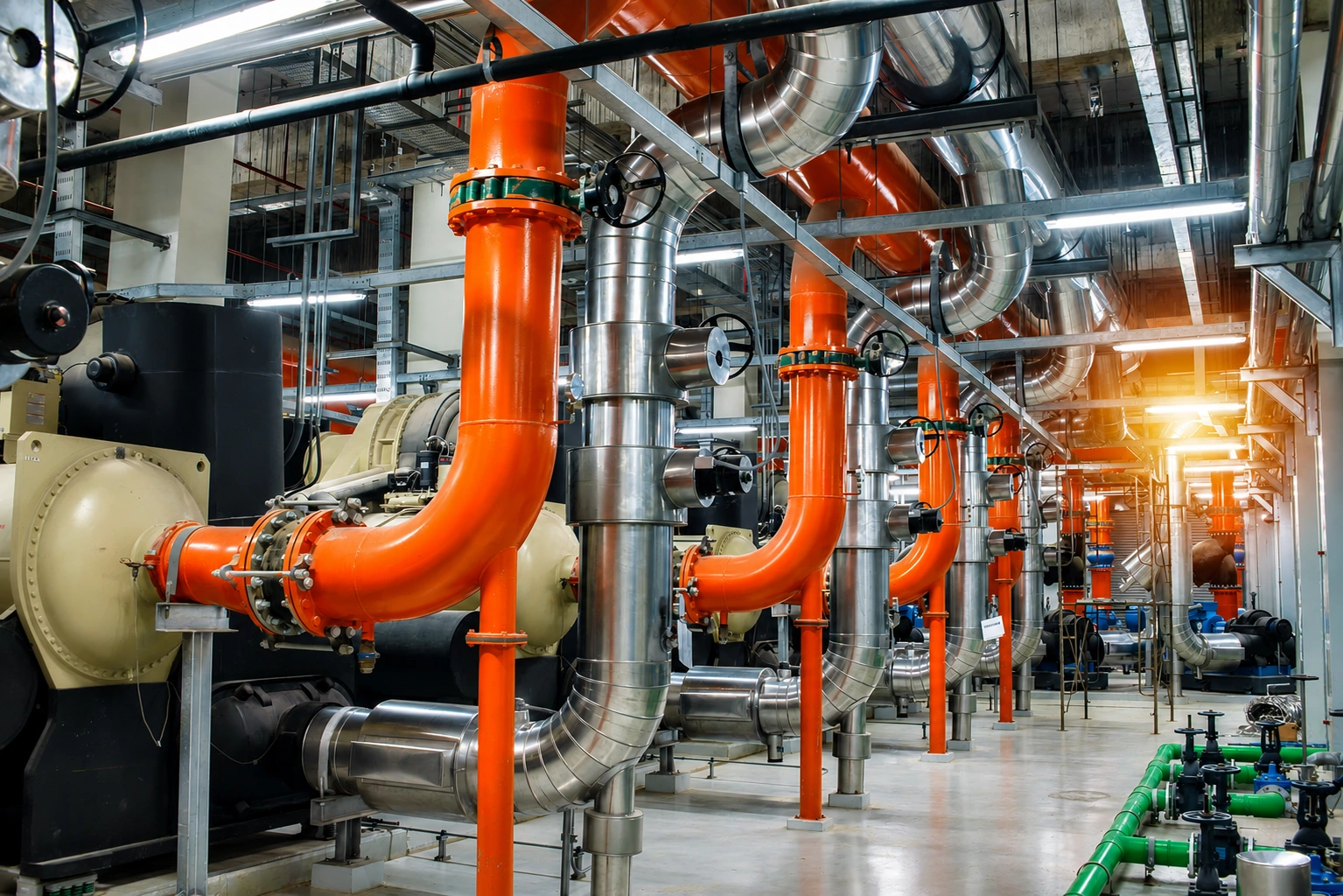

| Commercial and Industrial HVAC | Valve bodies, actuator housings, pump parts, compressor housings, manifolds, fittings, damper and control hardware | Die casting, investment casting, sand casting, forging, CNC machining, coating, assembly | Pressure containment, temperature cycling, corrosion, vibration, sealing, flow performance, and serviceability |
| Plumbing and Potable Water | Faucet and valve bodies, fittings, manifolds, stems, balls, handles, meter and backflow components | Copper-alloy casting or forging, stainless casting, machining, plating, passivation, assembly | Lead-content requirements, wetted-material compliance, corrosion, dezincification, cleanliness, leak integrity, certification |
| Commercial Refrigeration | Compressor parts, valve bodies, manifolds, fittings, housings, covers, heat-transfer and control hardware | Aluminum die casting, stainless or brass machining, investment casting, brazing or joining where approved | Refrigerant compatibility, pressure, low temperature, leakage, cleanliness, brazing quality, and dimensional stability |
| Industrial Valves and Pumps | Bodies, bonnets, impellers, volutes, diffusers, stems, seats, manifolds, covers, flanges | Investment or sand casting, forging, machining, hardfacing or coating where specified, pressure testing | Pressure class, fluid chemistry, erosion, cavitation, corrosion, sealing, NDT, and material traceability |
| Pneumatic and Hydraulic Systems | Valve blocks, actuator bodies, manifolds, cylinders, end caps, fittings, regulator and control housings | Aluminum or zinc die casting, bar machining, forging, anodizing, plating, assembly, leak testing | Internal passages, pressure, cleanliness, burr control, sealing, thread accuracy, response, and leakage |
| Component Family | Representative Hardware | Common Product Forms | Typical Verification |
|---|---|---|---|
| Valve Bodies and Bonnets | Ball, gate, globe, check, butterfly, control, balancing, and isolation valve components | Copper-alloy, stainless, iron, steel, or aluminum castings and forgings | NDT as applicable, CMM, pressure testing, leak testing, seat and thread inspection, material records |
| Pump and Compressor Components | Impellers, volutes, housings, covers, diffusers, shafts, compressor bodies, bearing supports | Castings, forgings, die castings, machined wrought material | Balance, dimensional inspection, pressure testing, surface finish, NDT, functional testing |
| Manifolds and Flow Blocks | Hydraulic, pneumatic, refrigerant, water, and process-fluid manifolds | Machined billet, die casting, investment casting, forged blocks | Cross-bore inspection, cleanliness, burr control, pressure decay, helium or tracer testing, dimensions |
| Stems, Balls, Seats and Trim | Valve stems, balls, discs, seats, cages, plugs, bushings, and wear components | Machined bar, forgings, investment castings, coated or hardfaced components | Roundness, concentricity, surface finish, hardness, coating, sealing, material verification |
| Actuator and Control Housings | Pneumatic, electric, hydraulic, compressor, regulator, and control-system housings | Aluminum or zinc die castings, machined housings, iron or steel castings | Sealing, ingress protection, dimensions, coating, pressure or leak testing, assembly checks |
| Material Family | Representative Uses | Primary Selection Drivers |
|---|---|---|
| Lead-Free Copper Alloys and Bronzes | Potable-water valves, fittings, faucets, manifolds, meter and plumbing hardware | Lead content, dezincification, corrosion, machinability, pressure integrity, certification, and cost |
| Austenitic Stainless Steels | Food, beverage, chemical, water, refrigerant, pump, valve, and hygienic components | Corrosion, temperature, cleanliness, passivation, weldability, finish, and fluid compatibility |
| Duplex and Specialty Stainless Steels | Chloride, seawater, process-fluid, high-strength valve and pump components | Pitting, crevice corrosion, SCC, ferrite balance, heat treatment, welding, and NDT |
| Aluminum and Zinc Alloys | Actuator bodies, compressor housings, pneumatic valves, enclosures, covers, brackets | Mass, castability, pressure tightness, corrosion, coating, threads, sealing, and volume |
| Iron, Carbon Steel and Nickel Alloys | Industrial valves, pumps, pressure equipment, steam, high-temperature, and corrosive services | Pressure class, temperature, impact, corrosion, erosion, weldability, heat treatment, and cost |
Review aluminum and copper alloys, stainless and carbon steels, and materials and technical specifications.
Potable-water compliance applies to the complete product and certified scope, not merely to an alloy name.
See investment casting, sand casting, and aluminum die casting.
See precision machining, multi-axis CNC machining, and surface finishing and roughness guidance.
Surface-finish targets should be specified by function rather than using one universal value for every valve or pump component.
| Feature | Typical Functional Concern | Specification Considerations |
|---|---|---|
| Cast Internal Flow Path | Pressure loss, turbulence, erosion, deposits, cleaning | As-cast process, local geometry, inaccessible surfaces, coating, allowable roughness, and inspection method |
| Elastomeric Seal Bore | Leakage, seal wear, installation damage | Ra, lay direction, waviness, burrs, lead-in, hardness, and coating |
| Metal Seat or Ball Interface | Shutoff leakage, friction, wear, galling | Roundness, lapping, coating, hardness pairing, Ra, contact pattern, and cleanliness |
| Gasket or Flange Face | Gasket grip, sealing, blowout, relaxation | Finish pattern, Ra range, flatness, serration, gasket type, pressure, and standard |
| Bearing or Shaft Interface | Fit, lubrication, wear, heat, runout | Diameter, roundness, cylindricity, Ra, hardness, lubrication, and assembly method |
| Test Method | Typical Use | Planning Considerations |
|---|---|---|
| Hydrostatic Testing | Pressure-containing valve, pump, fitting, manifold, and housing components | Pressure, medium, dwell, temperature, drying, corrosion prevention, safety, and acceptance |
| Pneumatic Pressure Decay | Production leak testing of sealed components and assemblies | Test pressure, volume, stabilization, temperature compensation, cycle time, and allowable decay |
| Air-Under-Water Testing | Visual bubble detection for selected components | Operator sensitivity, pressure, dwell, trapped air, immersion, cleanliness, and documentation |
| Helium or Tracer-Gas Testing | Low-leak-rate refrigeration, vacuum, gas, and high-integrity applications | Leak-rate unit, calibration, background, fixture leakage, test mode, cleanliness, and cost |
| Flow and Functional Testing | Valve shutoff, Cv or flow behavior, actuator operation, pump or manifold performance | Fluid, temperature, pressure, flow range, fixture, instrumentation, cycle count, and acceptance criteria |
Testing frequency may be 100% or sample-based depending on risk, specification, validation, process capability, and customer requirements. It should not be assumed to be universal.
See assembly and kitting for broader module, hardware, and packaging support.
Review quality assurance and certifications and testing and inspection capabilities.
Review global footprint and logistics for inventory, customs, warehousing, and delivery planning.
ForceBeyond may support potable-water programs using customer-specified lead-free copper alloys, stainless steels, polymers, seals, and coatings. Compliance with the Safe Drinking Water Act, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, or other requirements must be established for the complete product, material, wetted surface, manufacturing route, and certification scope.
Project-specific assembly may include cast or forged bodies, machined stems, balls, seats, seals, handles, fasteners, actuators, labeling, testing, and packaging. Assembly scope, approved components, torque, cleanliness, pressure or leak testing, traceability, and certification requirements should be defined before quotation.
Depending on application and allowable leak rate, methods may include hydrostatic testing, pneumatic pressure decay, air-under-water testing, helium or tracer-gas testing, vacuum decay, flow testing, and functional valve testing. Test pressure, medium, dwell, temperature, cleanliness, and acceptance criteria must be specified.
Provide drawings, CAD, material, pressure class, temperature range, fluid or refrigerant, thread or connection standard, annual volume, heat treatment, coating, cleanliness, leak rate, test method, inspection, assembly, certification, packaging, and delivery requirements.
Send your drawings, material, pressure class, fluid or refrigerant, temperature, annual volume, threads, heat treatment, coating, cleanliness, leak rate, test method, assembly, certification, packaging, and delivery requirements for an engineering review.
