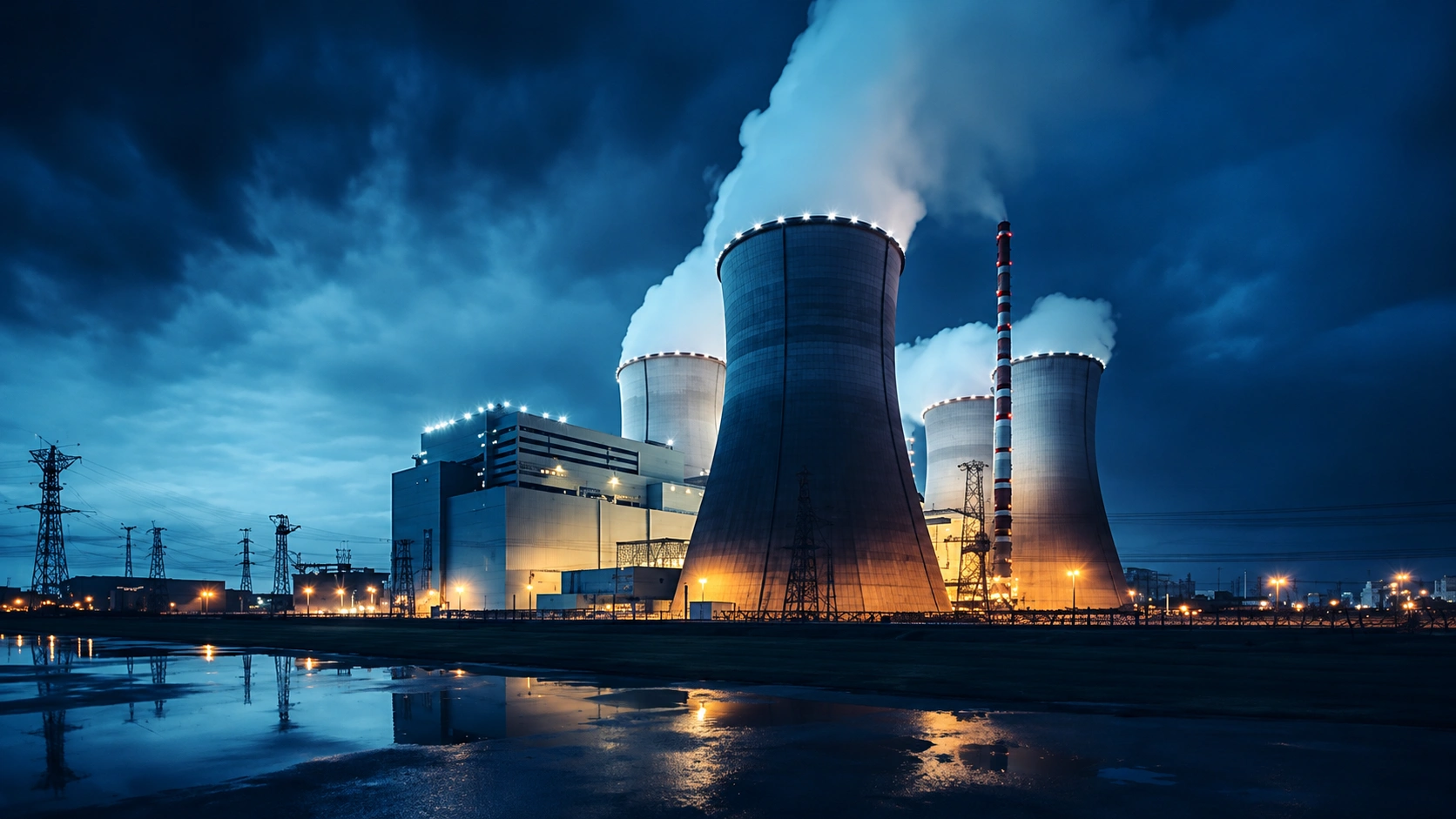

Nuclear power generation infrastructure with cooling towers and electrical transmission systems

Nuclear & SMR Components for Advanced Reactor Systems

Manufacturing Support for Nuclear, SMR and Advanced Reactor Components

Small modular reactors, microreactors, and advanced reactor concepts require components capable of operating under demanding combinations of temperature, pressure, irradiation, corrosion, fatigue, creep, and long service intervals.

ForceBeyond supports nuclear and SMR programs through investment casting, forging, rolled-ring production, precision machining, HIP, heat treatment, finishing, inspection, and supply-chain coordination.

Final process route, quality system, source approval, safety classification, code applicability, documentation, and regulatory requirements must be defined by the customer and governing contract.

Advanced Reactor and SMR Applications

Reactor or System Type	Representative Component Needs	Material and Process Considerations
Light-Water SMRs	Pressure-boundary hardware, valve bodies, pump components, reactor internals, supports, flanges, rings, and fittings	Code-defined materials, fracture toughness, corrosion resistance, weldability, NDT, traceability, and pressure testing
Microreactors	Compact structural hardware, heat-transfer components, shielding supports, vessel hardware, transportable module components	Compact geometry, thermal cycling, transport loads, modular assembly, inspection access, and field serviceability
Molten Salt Reactors	Salt-contacting vessels, valve bodies, pump housings, impellers, manifolds, heat-exchanger hardware, and structural components	Coolant chemistry, impurity control, corrosion, mass transfer, temperature, weldability, and qualification data
High-Temperature Gas Reactors	Heat-exchanger hardware, pressure-boundary parts, internal supports, control-system components, and high-temperature structures	Creep, oxidation, helium compatibility, thermal gradients, graphite interaction, and elevated-temperature code rules
Sodium-Cooled Fast Reactors	Pump and valve components, piping hardware, vessels, internals, supports, and heat-transfer components	Sodium compatibility, thermal shock, leak detection, cleanliness, weld integrity, and inspection planning

Nuclear and SMR Component Portfolio

Component Family	Representative Hardware	Potential Manufacturing Route	Key Verification Needs
Reactor Internals	Supports, housings, grids, spacers, guide structures, brackets, and internal hardware	Investment casting, forging, plate or bar machining, approved joining, heat treatment	Material traceability, dimensional inspection, NDT, surface condition, configuration control
Pressure-Boundary Hardware	Forged rings, flanges, nozzles, closures, manways, covers, vessel transition pieces	Open-die forging, rolled-ring forging, heat treatment, rough machining, ultrasonic inspection, finish machining	Fracture toughness, ultrasonic testing, mechanical properties, dimensions, documentation, approved material source
Valves and Flow Control	Valve bodies, bonnets, seats, stems, manifolds, fittings, steam or coolant-system hardware	Forging, investment casting, sand casting, machining, hardfacing or coating where specified	Pressure integrity, NDT, material verification, seat geometry, leak testing, corrosion compatibility
Pump Components	Pump housings, impellers, shafts, diffusers, covers, canned-motor structures	Casting, forging, machining, heat treatment, coating, balancing, pressure testing	Flow geometry, balance, pressure containment, surface finish, NDT, dimensional accuracy
Heat-Transfer and Support Hardware	Heat-exchanger components, plates, manifolds, supports, frames, brackets, and transition pieces	Forging, casting, machining, fabrication, joining, heat treatment, finishing	Thermal cycling, dimensional stability, weld or braze quality, cleanliness, leak testing, traceability

Materials for Nuclear and Advanced Reactor Components

Material selection should be controlled by the reactor designer, governing code, coolant chemistry, irradiation conditions, service temperature, pressure, weldability, fracture behavior, and available qualification data.

Austenitic stainless steels: used in selected internals, piping, valve, pump, and heat-transfer applications.
Low-alloy and ferritic steels: used in selected pressure-vessel, flange, ring, shaft, and structural applications.
Nickel-base alloys: considered for elevated-temperature, corrosion-resistant, weld-overlay, valve, steam-generator, or advanced-coolant applications.
Duplex and super duplex stainless steels: may be evaluated for selected balance-of-plant or cooling-water applications, subject to code and environment.
Titanium and zirconium alloys: used in specific corrosion-resistant, heat-transfer, fuel-system, or reactor applications according to validated design requirements.

Review materials and technical specifications and material cross-reference charts for specification context. Cross-referenced grades should not be treated as automatically interchangeable.

Component-to-Manufacturing Process Matrix

Component Type	Preferred Starting Route	Secondary Operations	Typical Inspection
Large Rings and Flanges	Rolled-ring or open-die forging	Heat treatment, rough machining, stress relief where required, finish machining	Ultrasonic testing, mechanical testing, hardness, dimensional inspection, material documentation
Complex Valve or Pump Bodies	Investment casting, sand casting, or closed-die forging depending on size and geometry	HIP where specified, heat treatment, machining, coating, pressure testing	Radiography or UT as applicable, penetrant or magnetic-particle inspection, CMM, pressure or leak testing
Internal Supports and Housings	Investment casting, forging, plate, or wrought stock	Machining, approved joining, heat treatment, passivation or coating	Dimensional inspection, surface NDT, material verification, weld inspection where applicable
Pump Impellers and Flow Components	Investment casting, sand casting, or wrought stock machining	HIP where specified, heat treatment, machining, polishing, balancing	Radiography, penetrant inspection, dimensional inspection, balance, pressure or performance testing
Prototype and FOAK Hardware	Machined billet, prototype casting, forging, or hybrid route	Rapid tooling, machining, heat treatment, surface finishing, assembly	First article, dimensional comparison, NDT, material testing, design-review feedback

Investment and Sand Casting for Nuclear Hardware

Investment casting: useful for complex near-net geometry, internal passages, thin-to-moderate sections, and reduced machining stock.
Vacuum melting and pouring: may be used for reactive or high-alloy materials where chemistry and cleanliness require controlled atmosphere.
Sand casting: may suit larger valve bodies, pump housings, structural hardware, and lower-volume components.
HIP: may reduce internal porosity in qualified cast products when specified, but does not guarantee defect-free or fully dense material in every geometry.
Qualification: casting procedure, heat treatment, test coupons, NDT, repair policy, and acceptance criteria should be agreed before production.

See investment casting, Inconel vacuum precision casting, and carbon and low-alloy steel casting.

Forgings and Rolled Rings for Pressure and Structural Applications

Open-die forging: suitable for large shafts, hubs, blocks, discs, nozzles, and pressure-boundary preforms.
Closed-die forging: supports repeatable near-net shapes where volume and tooling economics justify the process.
Rolled rings: used for flanges, vessel rings, closures, bearing rings, and other circumferential components.
Grain flow: forging route and reduction schedule should support loading direction, toughness, and inspection requirements.
Test material: prolongations, coupons, sacrificial zones, or test rings may be required by code or purchase specification.

Review open-die forging and rolled-ring forging for additional process guidance.

HIP and Heat Treatment Planning

HIP and heat treatment should be controlled through material-specific procedures, qualified equipment, defined temperature and pressure cycles, furnace surveys, records, and post-process verification.

HIP: may close selected internal porosity and support property consistency in qualified cast or powder-based products.
Solution treatment and aging: used for selected nickel alloys, precipitation-hardening stainless steels, and other age-hardenable materials.
Quench and temper: used for selected alloy steels where strength, toughness, and hardness must be balanced.
Stress relief: may be used between rough and finish machining to control residual stress and distortion.
Verification: hardness, tensile, impact, microstructure, grain size, dimensional stability, and other tests may apply.

Learn more about Hot Isostatic Pressing and heat treatment.

Nuclear Quality, Code Scope and Source Approval

Nuclear manufacturing requirements vary significantly by safety classification, component function, jurisdiction, owner, reactor design, and applicable code.

Code applicability: define ASME, ASTM, customer, regulatory, or project-specific requirements before quoting.
Quality program: confirm required quality-system scope, audit status, approved suppliers, and sub-tier controls.
Safety classification: identify safety-related, safety-significant, commercial-grade, balance-of-plant, or other project designation.
Commercial-grade dedication: define critical characteristics, source evaluation, testing, acceptance, and documentation where applicable.
Source approval: verify material mills, forges, foundries, heat treaters, NDT providers, laboratories, and repair sources.

Review quality assurance and certifications for broader quality-system and documentation information.

NDT, Dimensional Inspection and Material Testing

Method	Typical Use	Planning Considerations
Radiographic Testing	Volumetric evaluation of selected castings and weldments	Technique, geometry, section thickness, image quality, defect orientation, and acceptance standard
Ultrasonic Testing	Forgings, rings, shafts, plate, welds, and selected castings	Grain structure, attenuation, calibration, scan plan, surface condition, and reference standards
Penetrant or Magnetic-Particle Inspection	Surface-breaking discontinuities in compatible materials	Material compatibility, surface preparation, sensitivity, personnel qualification, and acceptance criteria
Dimensional Inspection	GD&T, profile, position, runout, wall thickness, sealing surfaces, and assembly interfaces	Datum strategy, measurement uncertainty, temperature, fixturing, access, and reporting format
Mechanical and Metallurgical Testing	Tensile, impact, hardness, chemistry, microstructure, grain size, ferrite, corrosion, or other project tests	Specimen location, orientation, heat treatment, lot definition, test standard, and acceptance criteria

See testing and inspection capabilities for detailed method-selection guidance.

Material Traceability and Documentation

Heat and lot control: preserve identification from raw material through manufacturing and shipment where required.
Material records: include MTRs, chemistry, mechanical properties, heat treatment, and approved-source evidence.
Process records: maintain forging, casting, HIP, furnace, coating, NDT, weld, and repair documentation as applicable.
Inspection records: dimensional reports, first article, NDT, test results, calibration, and nonconformance documentation.
Record retention: define duration, format, revision control, accessibility, cybersecurity, and customer access.

Documentation content should be contractually defined. Not every shipment automatically includes every possible report or EN 10204 inspection document.

FOAK, Prototype and Development Support

Design-for-manufacturability review: evaluate material, geometry, tooling, machining, inspection, and assembly risks early.
Prototype routing: compare machined billet, rapid tooling, prototype casting, forging, and hybrid routes.
Test hardware: produce coupons, mockups, flow loops, pressure-test articles, and development assemblies where required.
Design iteration: incorporate dimensional, NDT, material, corrosion, and assembly feedback into the next revision.
Production transition: establish qualified tooling, sources, control plans, first article, and change control before scaling.

Review the manufacturing design guides for DFM and early-stage engineering considerations.

Nuclear Supply Chain and Program Management

Approved-source planning: confirm mills, foundries, forges, heat treaters, NDT providers, laboratories, and coating sources.
Long-lead materials: plan ingot, billet, master heat, special alloy, tooling, test material, and capacity requirements.
Configuration control: manage drawing, specification, material, process, source, tooling, and inspection revisions.
Export and data controls: identify restricted technical data, end use, end user, destination, and access limitations.
Packaging and preservation: protect machined, passivated, coated, or pressure-boundary components during storage and shipment.

See global footprint and logistics for supply-chain, customs, warehousing, and delivery planning.

Nuclear and SMR Component RFQ Checklist

Technical package: drawing, CAD, revision, bill of materials, configuration, and design authority.
Code and classification: applicable code, safety class, quality clauses, commercial-grade dedication, and regulatory requirements.
Material: alloy, product form, specification, heat treatment, approved mill or source, and test requirements.
Operating conditions: temperature, pressure, coolant, irradiation, cyclic duty, corrosion environment, and design life.
Inspection: NDT, first article, dimensional inspection, mechanical testing, pressure testing, and acceptance criteria.
Documentation: MTRs, certificates, traceability, process records, retention, cybersecurity, and shipment package.
Commercial: prototype quantity, annual volume, lot size, tooling, target delivery, and program duration.

Frequently Asked Questions: Nuclear & SMR Components

What manufacturing processes are commonly used for nuclear and SMR components?

Depending on component function and qualification requirements, nuclear and SMR hardware may use investment casting, sand casting, open-die forging, closed-die forging, rolled-ring forging, wrought stock machining, HIP, heat treatment, welding, brazing, coatings, NDT, dimensional inspection, and pressure or leak testing.

Can ForceBeyond manufacture safety-related nuclear components?

Safety classification, code scope, material, approved source, quality program, documentation, and regulatory requirements must be defined by the customer and governing contract. ForceBeyond may support nuclear manufacturing programs through qualified facilities and suppliers, but no component should be represented as safety-related, code-stamped, or nuclear-qualified without the applicable approvals and documented scope.

Which alloys are used in molten salt, high-temperature gas, or sodium-cooled systems?

Candidate materials vary by coolant chemistry, temperature, irradiation, pressure, weldability, corrosion mechanism, and design code. Nickel alloys, stainless steels, ferritic or martensitic steels, zirconium alloys, and other materials may be evaluated, but final material selection must come from the reactor designer, governing specification, and validated test data.

What information is needed for a nuclear or SMR component quote?

Provide drawings, CAD, material and product form, code or specification, safety classification, annual quantity, operating temperature and pressure, irradiation or coolant environment, heat treatment, NDT, inspection frequency, traceability, documentation, approved-source restrictions, export-control requirements, and target delivery schedule.
