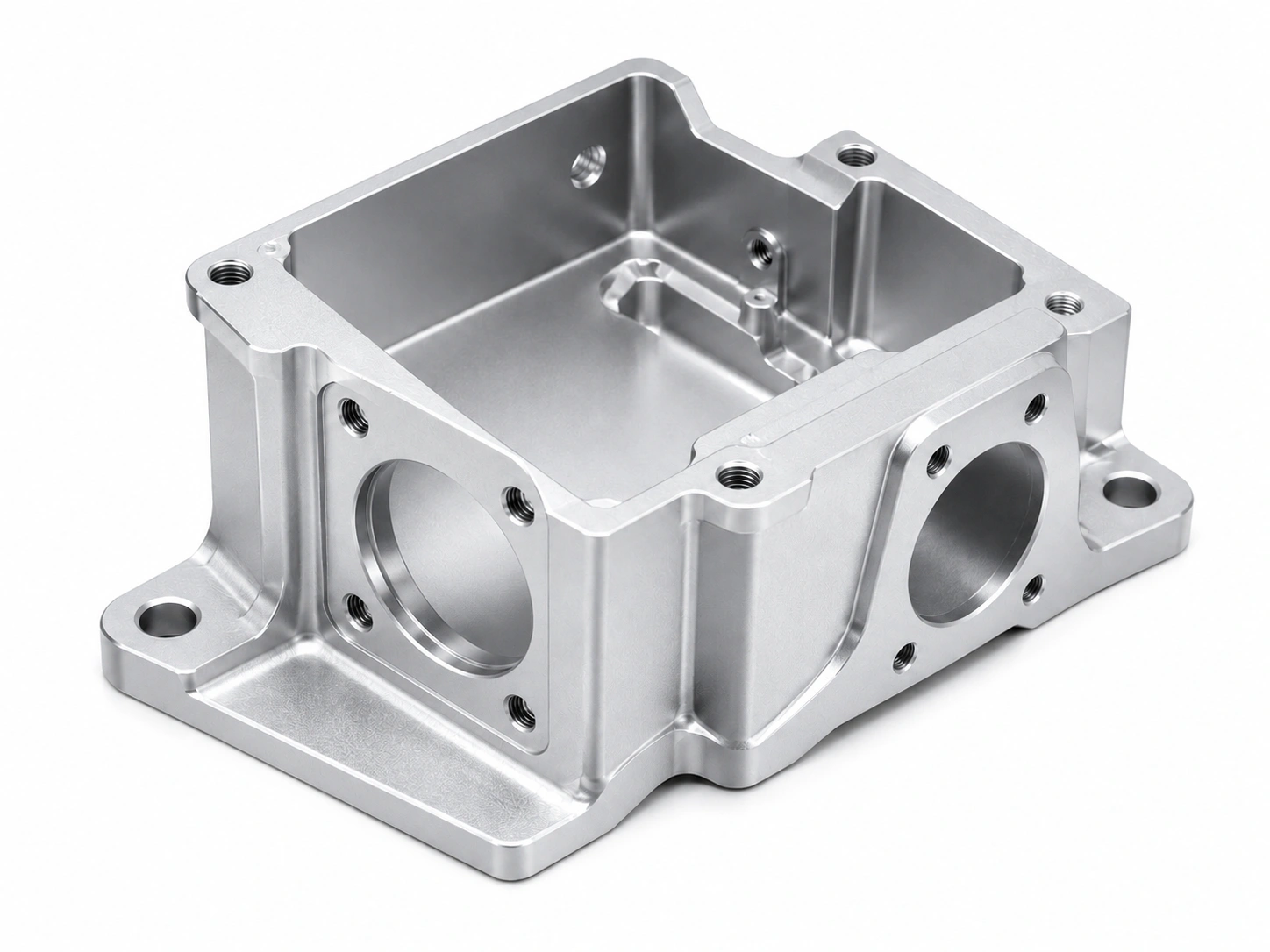

Surface Finishing and Protective Coatings for Engineered Components

Surface finishing affects corrosion resistance, wear, friction, cleanability, electrical behavior, adhesion, appearance, sealing, and dimensional fit. ForceBeyond coordinates finishing for castings, forgings, and precision-machined components according to material, service environment, governing specification, and customer requirements.

Finishing may be performed by qualified internal or approved external sources depending on process, location, certification scope, capacity, and customer approvals. The required source, specification, thickness, testing, masking, and documentation should be confirmed before production.

How to Select a Surface Finish or Coating

• Base material: stainless steel, carbon steel, aluminum, titanium, copper, brass, bronze, nickel alloys, and cast iron require different pretreatments and compatible processes.
• Service environment: consider humidity, saltwater, chemicals, temperature, UV exposure, wear, galling, cleaning, and electrical contact.
• Functional requirement: define corrosion, hardness, friction, conductivity, insulation, appearance, cleanability, or paint adhesion.
• Dimensional requirement: account for coating buildup, material removal, penetration, edge effects, masking, and post-finish inspection.
• Specification: identify governing ASTM, AMS, MIL, ISO, customer, medical, automotive, or aerospace requirements.
• Validation: define thickness, adhesion, hardness, color, corrosion, roughness, cleanliness, and acceptance criteria.

Surface Finish Process-to-Material Matrix

Use this quick-reference matrix for preliminary process selection. Final suitability depends on alloy, temper, casting quality, heat treatment, geometry, service environment, dimensional requirements, and the governing specification.

Surface Finishing and Coating Options

Stainless Steel Passivation

Passivation is used to remove free iron and selected surface contamination from stainless steel after machining, handling, fabrication, or heat treatment.

• Cleaning first: oil, grease, scale, heat tint, and embedded debris should be removed before passivation.
• Chemistry selection: citric- or nitric-based systems should be selected according to alloy, specification, contamination, and process capability.
• Verification: water-break, copper sulfate, high-humidity, salt-spray, or other tests may be specified depending on the standard.
• Limitations: passivation does not repair severe heat tint, remove all scale, change bulk chemistry, or guarantee corrosion resistance in every environment.

Electropolishing for Stainless and Cobalt-Alloy Components

• Controlled material removal: process parameters affect dimensional change, edge rounding, burr reduction, and surface texture.
• Surface improvement: electropolishing may reduce microscopic peaks and improve cleanability and brightness.
• Geometry effects: current density, fixturing, cathode placement, recesses, and shielding influence uniformity.
• Pre- and post-cleaning: cleaning, rinsing, neutralization, and final handling affect final surface quality.
• Application approval: sanitary or medical use depends on the complete material, process, validation, cleanliness, and regulatory package—not electropolishing alone.

Type II and Hardcoat Anodizing

Anodizing converts the aluminum surface into an oxide layer. Final results depend on alloy, temper, casting porosity, surface condition, pretreatment, thickness, dye, sealing, geometry, and specification.

• Type II anodizing: commonly selected for corrosion protection, color, appearance, and moderate wear requirements.
• Hardcoat anodizing: selected for greater thickness, wear resistance, or electrical insulation where compatible with alloy and geometry.
• Dimensional growth: bores, shafts, threads, fits, sealing surfaces, and bearing locations should include coating allowance or masking.
• Alloy variation: cast and high-alloy aluminum may show different color, hardness, porosity, or appearance from wrought alloys.
• Sealing: sealing method can affect corrosion resistance, color, wear, and electrical behavior.

Conversion Coatings for Aluminum and Magnesium

• Corrosion protection: conversion coatings provide a thin protective layer with limited dimensional effect.
• Paint adhesion: properly controlled pretreatment can improve adhesion of primers and topcoats.
• Electrical requirements: some classes are selected where lower contact resistance is important.
• Compliance: hexavalent-chromium, trivalent-chromium, chromate-free, and environmental requirements should be specified explicitly.
• Handling: thin conversion layers can be damaged by abrasion, contamination, or improper packaging.

Electroless Nickel Plating

Electroless nickel uses an autocatalytic reaction to deposit a nickel-alloy coating without external current.

• Uniform external coverage: thickness can be more consistent than electrolytic plating on many complex shapes.
• Phosphorus content: low-, medium-, and high-phosphorus deposits trade hardness, corrosion resistance, solderability, and heat-treatment response differently.
• Pretreatment: adhesion depends on cleaning, activation, base material, surface condition, and process control.
• Internal geometry: deep recesses, blind holes, threads, and narrow passages require solution exchange and may not plate identically to exposed surfaces.
• Post-treatment: baking or heat treatment may be used for hardness, adhesion, or hydrogen-embrittlement control where applicable.

Electroplating and Metallic Coatings

• Zinc plating: commonly used for sacrificial corrosion protection on carbon steel fasteners and hardware.
• Nickel plating: selected for appearance, corrosion, wear, diffusion barrier, or undercoat applications.
• Tin and silver: used for solderability, conductivity, contact resistance, or electrical hardware.
• Thickness distribution: current density and part geometry can create edge buildup and low-current-density areas.
• Hydrogen embrittlement: high-strength steels may require process restrictions, prompt baking, and verification.

E-Coating, Powder Coating and Liquid Paint

• E-coating: immersion and electrical deposition can provide good coverage on complex conductive parts with suitable pretreatment.
• Powder coating: offers durable color and barrier protection but adds measurable thickness and requires oven curing.
• Liquid paint: supports primers, topcoats, high-temperature systems, touch-up, and specialized chemical resistance.
• Cure control: time and temperature affect adhesion, hardness, gloss, color, and substrate properties.
• Edge and recess performance: coating coverage should be evaluated on sharp edges, welds, cavities, and Faraday-cage regions.

Surface Roughness Capabilities: Ra and RMS Guidance

Engineering drawings commonly specify arithmetic average roughness (Ra) or root mean square roughness (RMS/Rq). They are related but not universally interchangeable. The exact relationship depends on the measured surface profile.

These are representative engineering targets, not universal guaranteed capabilities. Final roughness depends on material, initial surface, geometry, access, abrasive sequence, polishing direction, coating, measurement cutoff, filter, stylus direction, and inspection location.

Surface Preparation and Pretreatment

Coating performance depends heavily on cleaning, surface condition, and process compatibility.

• Aqueous and solvent cleaning: remove oils, coolants, drawing compounds, fingerprints, and organic contamination.
• Ultrasonic cleaning: assist removal from complex features when chemistry, geometry, and cleanliness requirements permit.
• Abrasive blasting: remove scale, rust, residue, or old coatings and establish a controlled anchor profile.
• Pickling and etching: remove oxides and activate surfaces while controlling material removal and hydrogen risk.
• Deburring and tumbling: modify edges and texture before coating, while protecting critical dimensions and sealing surfaces.
• Water quality and rinsing: rinse control affects staining, residues, adhesion, and final cleanliness.

Masking and Selective Finishing

• Critical fits: mask bores, shafts, bearing seats, threads, datum targets, sealing surfaces, and electrical contacts where required.
• Masking method: plugs, caps, tape, wax, stop-off, reusable fixtures, or custom tooling may be selected.
• Transition zones: drawing notes should define acceptable feathering, witness lines, edge buildup, and coating boundaries.
• Thread strategy: specify pre- or post-coating thread condition, allowance, masking, chasing, and gauge requirements.
• Inspection: confirm coating exclusion, coverage, dimensions, and cleanliness after masking is removed.

Coating Thickness and Dimensional Planning

Finishing should be included in tolerance and process planning before final machining.

• Build-up coatings: plating, paint, powder, and e-coat add thickness to exposed surfaces.
• Conversion processes: anodizing includes both penetration and outward growth, while chemical conversion coatings are comparatively thin.
• Removal processes: electropolishing, pickling, etching, and blasting remove or modify surface material.
• Edge effects: corners, recesses, threads, and blind holes may receive different effective thickness.
• Inspection sequence: define which dimensions are inspected before coating and which are final-after-finish requirements.

See the manufacturing design guides for DFM, tolerance, masking, and machining-allowance planning.

Coating Inspection and Performance Testing

Review testing and inspection capabilities for broader metrology, material testing, and quality-documentation information.

Surface Finishing Quality Documentation

• Process certification: identify specification, revision, class, type, thickness, color, seal, and applicable exceptions.
• Source approval: document approved processor, accreditation, customer approval, and certificate scope where required.
• Inspection records: include visual, thickness, adhesion, hardness, corrosion, dimensional, or cleanliness results as specified.
• Lot traceability: link coating lot, process date, part lot, quantity, rework, and shipment records.
• Nonconformance control: document stripping, rework, repair, deviation, and customer approval when applicable.

Surface Finishing for Castings, Forgings and Machined Parts

Integrated Cast, Forge, Machine, Finish and Inspect Programs

1. Review the drawing: confirm finish specification, masking, dimensions, appearance, and test requirements.
2. Select the source: verify material compatibility, process capability, certification scope, capacity, and approvals.
3. Plan machining allowance: account for buildup, penetration, removal, post-finish machining, and final inspection.
4. Prepare and finish: clean, pretreat, mask, process, rinse, cure, seal, and handle according to the approved route.
5. Inspect and document: verify coating, dimensions, performance, traceability, packaging, and shipment records.

Surface finishing can be coordinated with secondary operations, assembly and kitting, and quality assurance according to the project scope.

Surface Finishing Applications by Industry

• Fluid and flow control: passivated stainless, coated cast iron, plated steel, and finished valve, pump, manifold, and fitting components.
• Aerospace: anodized aluminum, conversion-coated housings, plated fasteners, passivated stainless, and specification-controlled protective finishes.
• Medical and healthcare: electropolished or passivated components where the complete material, cleaning, validation, and regulatory requirements are approved.
• Automotive: e-coated brackets, powder-coated structures, plated fasteners, anodized housings, and corrosion-protected hardware.
• Data center and electrical: anodized housings, conversion-coated aluminum, plated copper, conductive contacts, busbars, and corrosion-protected thermal hardware.
