High Pressure Y Strainer Body

We are very experienced in manufacturing high pressure Y strainer body. We provide super quality of customized high pressure Y strainer body, which are designed to meet our customer’s target.

We maintain proactive communication with our customers to assure that we fully understand our customers’ requirements and produce parts with the desired characteristics in the most cost effective manner.

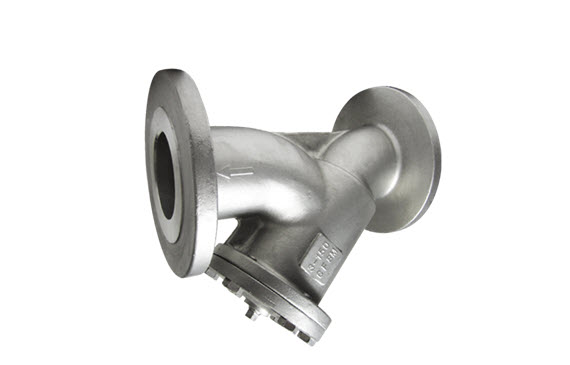

high pressure Y strainer

If you are looking for high pressure Y strainer body, get in touch today and we will provide you with an accurate quote and our best services.

What Is High Pressure Y Strainer?

High pressure y strainer has y-shaped compact design and is used to capture foreign particles flowing through the pipes of a pipeline in high pressure application. High pressure y strainers can be installed either horizontally or vertically, with the filtering element positioned towards the ground, and generate a pressure drop in the pipeline.

Application of High Pressure Y Strainer

The industries where high pressure y strainers are best used are those that need constant protection from debris. The most universally common use for a high pressure y strainer is in steam applications. Due to its shape, a high pressure y strainer has no trouble handling the high pressure that steam applications endure. Natural gas and air applications also benefit from being used with high pressure y strainers. Much like steam applications, natural gas and air environments have high pressure levels. These applications are also expected to put up with high temperatures, something that high pressure y strainers can easily endure.

Advantage of High Pressure Y Strainer

  • High pressure valve can go into applications vertically or horizontally that makes high pressure y strainer installation more versatile and easy
  • Compact size of high pressure y strainer makes them less expensive
  • The re-usability of high pressure y strainers provides an advantage for cleaning liquids or gas

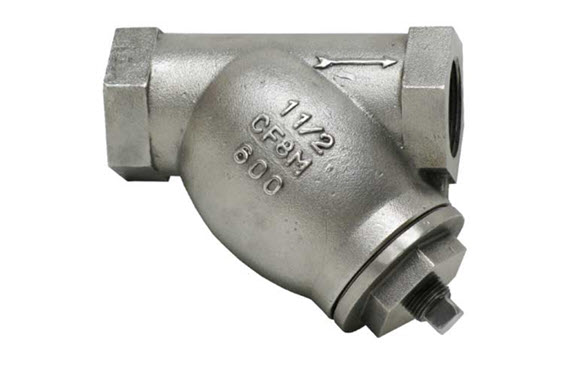

high pressure Y strainer

Material Information of High Pressure Y Strainer

High pressure Y strainers can come in a variety of materials including cast Iron, Bronze, Steel, Stainless Steel, Super Duplex Stainless Steel, Titanium, Cast Alloy 20, Cast Chrome-Moly.

Pressure Class: Up to 6,000 psi. Temperature Range: -40°F to 400°F. Sizes: ½” – 2”

Chemical Composition of Chromoly
C Mn P S Si Cr Mo
0.28 – 0.33 0.40 – 0.60 0.035 0.040 0.15 – 0.35 0.80 – 1.10 0.15 – 0.25


Mechanical Properties of Chromoly
Tensile Strength Yield Strength Modulus of Elasticity Elongation at Break (in 50mm) Reduction of Area Hardness, Brinell
560 Mpa 460 Mpa 190 – 210 Gpa 21.50% 59.6 217


Chemical Composition of Stainless Steel CF8M
C Mn P S Si Cr Ni Mo
0.08 MAX 1.50 MAX 0.04 MAX 0.04 MAX 1.50 MAX 18.0 – 21.0 9.0 – 12.0 2.0 – 3.0


Mechanical Properties of Stainless Steel CF8M
Tensile Strength Yield Strength Elongation
485 Mpa 205 Mpa 30.0%

Manufacturing Process of High Pressure Y Strainer

Casting and forging are the general process to make high pressure Y strainer body depends on the working environment and working pressure, both of which require mold/die of the high pressure Y strainer shape to be built. Generally, for high pressure application or working environment that high level safety is required, forging is the optimal solution for high pressure Y strainer compared with casting process that may have potential porosity issue. Secondary machining is required to cut the thread of high pressure Y strainer for pipe connecting. Also, considering the high temperature working environment, high temperature paint is selected for high pressure Y strainer for rust protection.

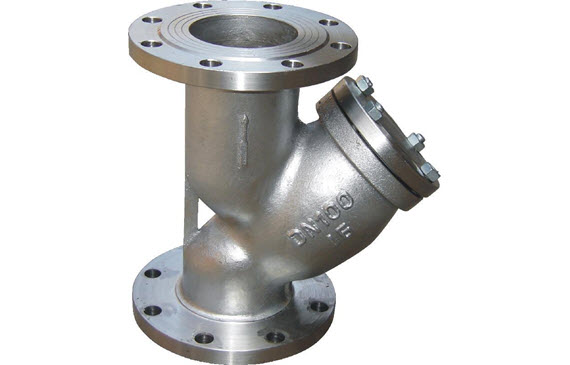

High Pressure Y Strainer Bodies
